OXE InspCam Compact 40 - self-levelling inspection camera

OXE INSPCAM COMPACT 40 - SELF-LEVELLING INSPECTION CAMERA

 The OXE InspCam Compact 40 is a compact and robust inspection camera suitable for inspecting pipes, sewers, gas pipelines, chimney systems and other areas. The camera is equipped with a 40 m long, 5.2 mm thick fiberglass push cable camera reel. Which is the ideal cable thickness for good penetration over long distances and at the same time guarantees sufficient flexibility for movement in 90° bends. The outstanding feature of this camera is the digital cable unwind countdown. The current unwind status is displayed online on the instrument display.

Practical use of the OXE InspCam Compact 40:

• plumbers and heating engineers to inspect ductwork, ventilation and air conditioning systems, electrical wiring, leaks, cracks and other details in building systems,
• chimney sweeps to inspect chimneys,
• builders and engineers to inspect building structures and other detailed monitoring,
• in the automotive industry to examine engines, parts and vehicle components for diagnostics and maintenance,
• in homes for control and inspection in hard-to-reach places.

MAIN FUNCTIONS

• Self-leveling waterproof camera with 130° wide angle and durable sapphire glass
• IP68 camera protection
• LED illuminator
• 40m long push cable with 5.2mm diameter
• 10" colour LCD display for real image or playback of captured footage
•  Photo/video recording including audio, stored on SD card (max 64 GB)
• Video resolution 1920 x 1080px
• Keyboard for easy setup, control and note-taking
• Writing text annotations to the image during recording
• Electronic cable distance counter (display)
• 46 mm and 80 mm diameter ejector heads
• IP68 water resistance for working in degraded conditions and up to 20m depth
• Compatible with 512 Hz locator to determine the exact position of the camera head (not included)
• Rechargeable battery for 6 - 7 hours of operation with continuous mains power
• Suitable for pipe diameters of 25 mm and larger (without the use of pipe guides)
• Min. focus distance: 15 cm
• Depth of Field (DOF): 20 cm
• Camera dimensions 23 mm x 51 mm
• Weight 13 kg

130° camera head

 The camera head is waterproof, and the sapphire glass on the camera lens makes it scratch resistant. It is equipped with a Sony 1/3" CCD sensor with a 130° angle of view. The camera takes pictures and records video on an SD card. Taking a photo or video recording can be done simply at the touch of a button. During recording, you can use the keyboard to insert your own text (notes) into the recorded videos. The camera also has audio recording. The camera is equipped with a 10" display for viewing online capture or already captured footage.

Self-leveling - horizon leveling

 The illumination is provided by 12 ultraluminous white LEDs. The camera is equipped with a self-levelling function - horizon levelling. The image does not warp and you still have it in a position with a balanced horizon. The camera head is equipped with a 512 Hz transmitter, making it easy to locate in the field and pinpoint its position (camera head locator not included).

 The OXE InspCam Compact 40 has a built-in battery with a standby time of up to 8 hours. The camera battery can be recharged using the CL socket input, or with a power adapter to the power plug. You can keep the camera connected to the mains at all times while you work. It is undoubtedly one of the best inspection cameras on the market in terms of price/performance ratio.

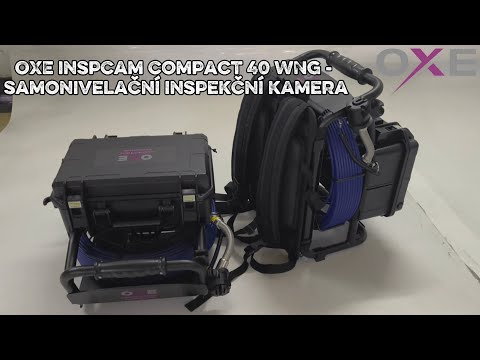

Demonstration of self-leveling (horizon leveling):

PACKAGING CONTENTS

1x OXE InspCam Compact 40 - self-levelling inspection camera
1x 10" LCD monitor (DVR)
1x Camera unit
1x 40m fiberglass push cable (cable diameter 5.2 mm)
2x Camera guard - 46 mm and 80 mm diameter ejector guide
1x Charger
1x Car charger
1x Connection cable
1x Screwdriver
1x Hexagon wrench
1x Screw, nut and waterproof ring
1x Accessory box
1x 6400 mAh battery
1x 32GB micro SD memory card
1x User manual

TECHNICAL SPECIFICATION
