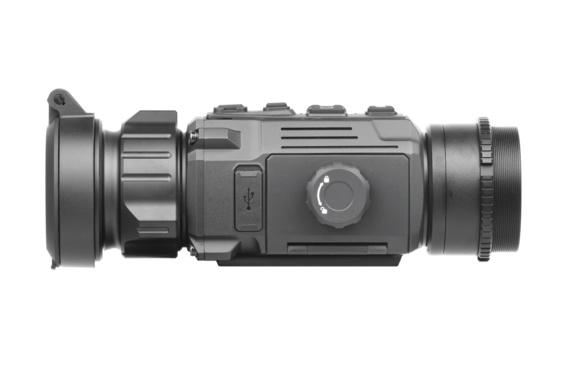

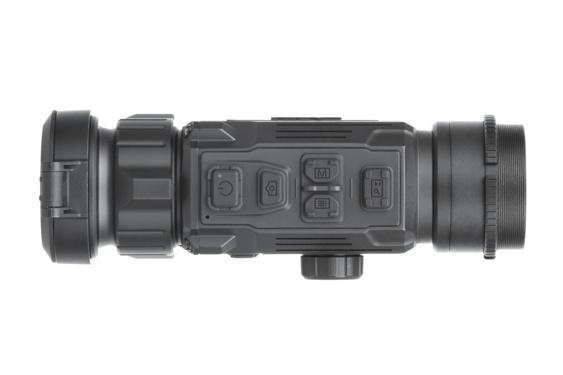

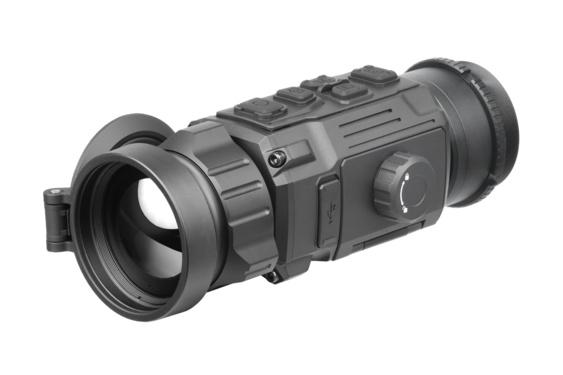

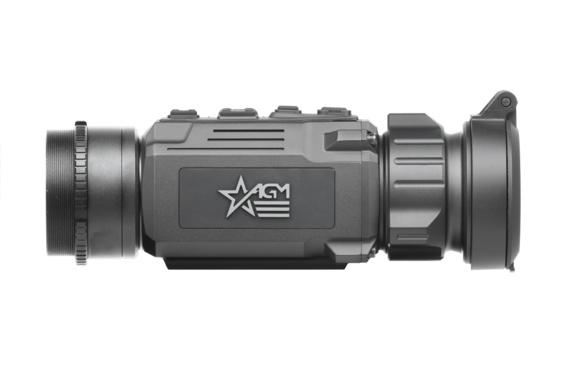

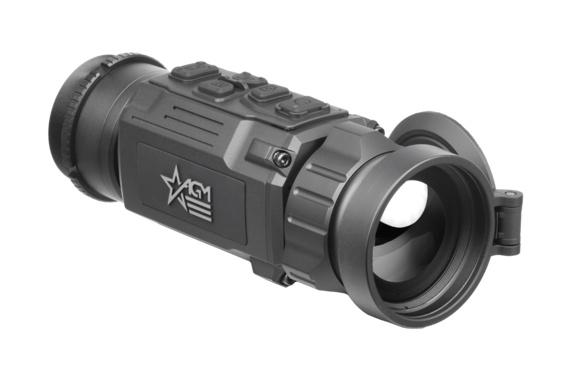

AGM Rattler-C V2 50-640
The NEW AGM Rattler-C V2 series of thermal clip-ons boasts a industry-leading 12 micron, sub-20mk thermal detectors. These
physical attributes provide users with some of the best image quality AGM has produced to date with potential detection...
Product code: 8249 EAN: 314205560206R561 Producer: AGM Global Vision
- Description
- Product inquiry

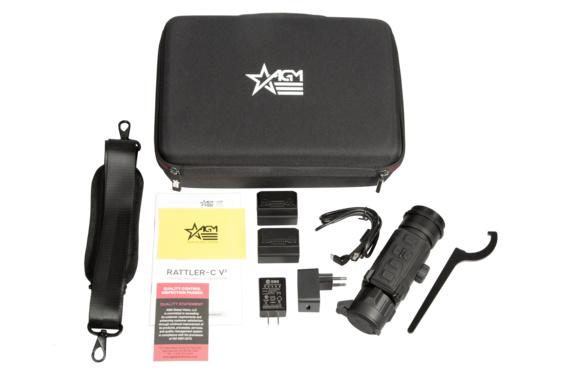

The NEW AGM Rattler-C V2 series of thermal clip-ons boasts a industry-leading 12 micron, sub-20mk thermal detectors. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons have a high-sensitivity sensor with 384×288 or 640×512 resolutions, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The Rattler-C V2 clip-on The Rattler TC can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.
| Resolution | 640 × 512 |
| Detector | 12μm VOx Uncooled Focal Plane Array |
| NETD | Less than 20 mK (25°C, F# = 1.0) |
| Refresh Rate | 50 Hz |
| Lens System | 50 mm; F/1.0 |
| Optical Magnification | 1× |
| Field of View | 8.8° × 7.0° |
| Focus Range | 10 m to infinity |
| Exit Pupil | 22 mm |
| Eye Relief | 10 mm |
| Detection Range (6’ object) | 2600 m/yd |
| Display | 0.39-inch, OLED, 1024×768 |
| Palettes | Black hot, White hot, Red hot, Fusion |
| Flat Field Correction | Auto, Manual, External Correction |
| Scene Mode | Cold, Warm |
| Video/Audio Recording | Yes |
| Image Capture | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (16 GB) |
| Defective Pixel Correction | Yes |
| WiFi Hotspot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes (Stadiametric) |
| Shot Activated Recording (SAR) | Yes |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Life (Operating, 20°C) | 9 h (25°C, with hotspot off) |
| External Power Supply | 5 VDC, 2 A, USB Type-C |
| Operating Temperature Range | -30°C to +55°C (-22°F to 131°F) |
| Protection Level | IP67 |
| Max. Recoil | 1000 g/0.4 ms |
| Weight (w/o mount and battery) | 0.55 kg (1.2 lb) |
| Dimensions (w/o mount) | 196 × 73 × 68 mm (7.7 × 2.9 × 2.7 in) |
